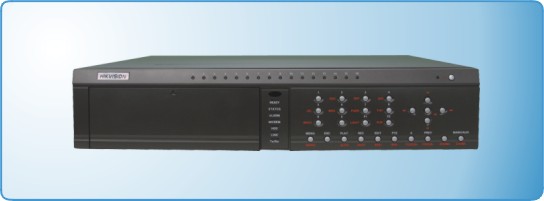

DS-808HCI-S 8 channels stand alone DVR
Product type: The 3rd generation of network DVR, an integration of DVR and DVS-recorder.
Video Compression Standard: H.264.
Video processing chip: DSP.
Typical Applications: VCD quality image. Audio and video synchronization. Support SATA HDD.
Order models:
DS-804HCI-S, DS-808HCI-S, DS-812HCI-S and DS-816HCI-S
Special notice:
Each video input channel supports up to CIF resolution on encoding while QCIF can also be chosen. Support recording in SATA HDD,and support eSATA interface for high-speed backup or memory extended. Alarm systems of 2-channel and 4-channel devices: 4 inputs and 2 outputs. Else: 16 inputs and 4 outputs. The devices with no less then 6 channels can support both main and sub channels for local monitoring.
DS-800HCI-S series DVRs include following model:
DS-804HCI-S: 4-ch video input and 4-ch audio input. Each channel can support CIF resolution real time. Or 2CIF/4CIF not real time. It has 4 SATA interfaces.
DS-808HCI-S: 8-ch video input and 8-ch audio input. Each channel can support CIF resolution real time. Or 2CIF/4CIF not real time. It has 8 SATA interfaces.
DS-812HCI-S: 12-ch video input and 12-ch audio input. Each channel can support CIF resolution real time. Or 2CIF/4CIF not real time. It has 8 SATA interfaces.
DS-816HCI-S: 16-ch video input and 16-ch audio input. Each channel can support CIF resolution real time. Or 2CIF/4CIF not real time. It has 8 SATA interfaces.
Hardware interface:
DS-804HCI-S:
[Notes] Support up to 4 SATA HDDs.
1_VIN video input interface, AIN audio input interface
2_VOUT local video surveillance interface, AOUT local audio surveillance interface;
3_LINE IN voice input interface;
4_VGA display output interface;
5_RS-232, RS-485 serial interfaces, KEYBOARD interface, UTP network interface the same as ETHERNET network interface;
6_RS-485 match resistor switch and RS-485 serial nterface, ALARM IN alarm input, ALARM OUT alarm output module;
7_Ground terminal;
8_Power: 110/220V AC;
9_eSATA backup/ storage expansion interface (optional).
DS-808HCI-S, DS-812HCI-S and DS-816HCI-S
[Notes] Support up to 8 SATA HDDs.
1_VIN video input interface, AIN audio input interface
2_AUX VOUT auxiliary local video surveillance interface, AUX AOUT auxiliary local audio surveillance interface;
3_VOUT local surveillance interface, AOUT local monitoring interface;
4_LINE IN voice talk input interface;
5_VGA display output interface;
6_RS-232 serial interface, ETHERNET network interface;
7_eSATA backup/ storage extension interface (optional);
8_RS-485 match resistor switches;
9_RS-485 serial interface, keyboard interface, ALARM IN alarm input, ALARM OUT alarm output module;
10_Grounding terminal;
11_Power: 110/220V AC.
The price is not include the Hard drive.
