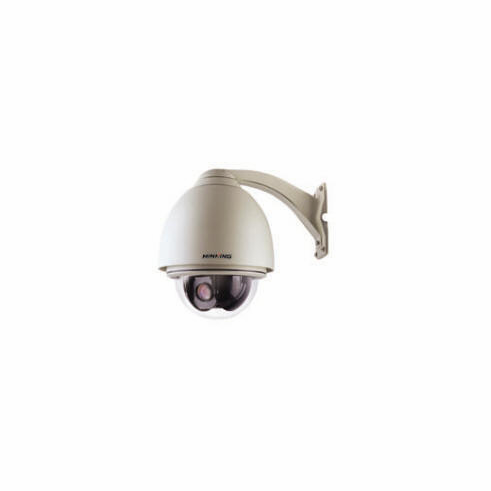

AES-DPK06PF18C Outdoor low speed dome PTZ camera, D/N camera, 22xZoom wall mount
Description:
•High Die-cast Aluminum Construction
•Low noise design
•Panning range 0~360°
•Tilt range 0~90°
•64 presets position
•6cruising tracks, each cruising track has 16 preset positions
•Multi-protocol, RS485 data communication
•AC24V input
•Built-in fan and heater
Outdoor Low Speed Dome Camera: AES_DPK06PF22C
Image Sensor: 1/4" CCD
Active Pixels: 752(H)×582(V)
Synchronization: Internal / External
Video Output VBS: 1.0Vp-p / 75 Ohms
White Balance: Auto / Manual
Scanning Frequency: 15.625KHz(H) 50Hz(V)
Horizontal Resolution: 480 TVL
S/N Ratio: 50dB
Electronic shutter: 1/3~1/10,000s
Min. Illumination: 0.01 Lux
Focal Lenght: f=4.1~73.8mm 18x
Focus & Iris: Auto / Manual
Pan Speed: 0°~15°/s
Tilt Speed: 0°~15°/s
Pan Range: 360° continuously
Tilt Range: 0°~90°
Preset: 64
Communication Multiprotocol: RS485
Work temperature: -35°C~55°C (with fan and heater)
Power supply: AC24V
Power consumption: 20VA
Weight: 4Kg
•High Die-cast Aluminum Construction
•Low noise design
•Panning range 0~360°
•Tilt range 0~90°
•64 presets position
•6cruising tracks, each cruising track has 16 preset positions
•Multi-protocol, RS485 data communication
•AC24V input
•Built-in fan and heater
Outdoor Low Speed Dome Camera: AES_DPK06PF22C
Image Sensor: 1/4" CCD
Active Pixels: 752(H)×582(V)
Synchronization: Internal / External
Video Output VBS: 1.0Vp-p / 75 Ohms
White Balance: Auto / Manual
Scanning Frequency: 15.625KHz(H) 50Hz(V)
Horizontal Resolution: 480 TVL
S/N Ratio: 50dB
Electronic shutter: 1/3~1/10,000s
Min. Illumination: 0.01 Lux
Focal Lenght: f=4.1~73.8mm 18x
Focus & Iris: Auto / Manual
Pan Speed: 0°~15°/s
Tilt Speed: 0°~15°/s
Pan Range: 360° continuously
Tilt Range: 0°~90°
Preset: 64
Communication Multiprotocol: RS485
Work temperature: -35°C~55°C (with fan and heater)
Power supply: AC24V
Power consumption: 20VA
Weight: 4Kg
